Dopplers

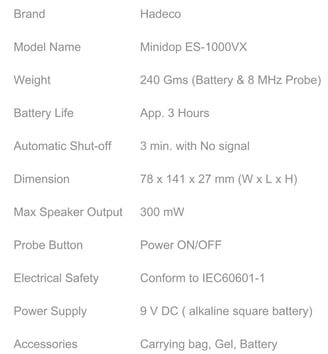

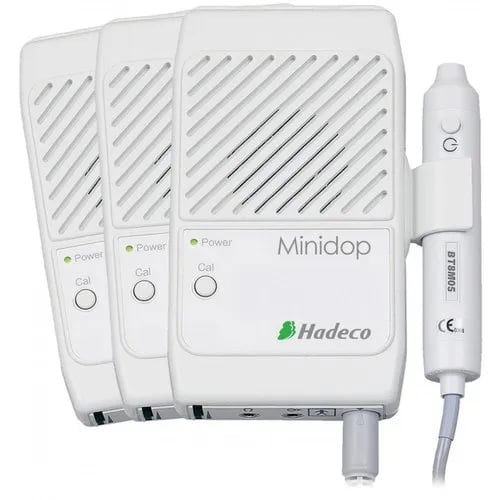

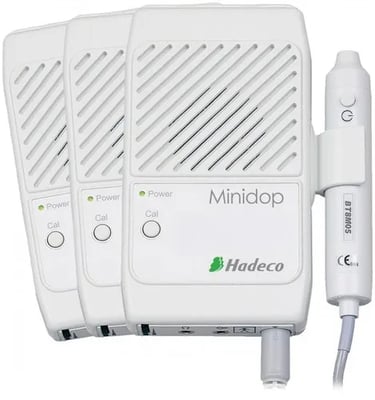

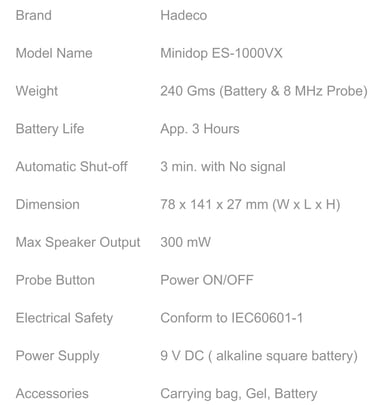

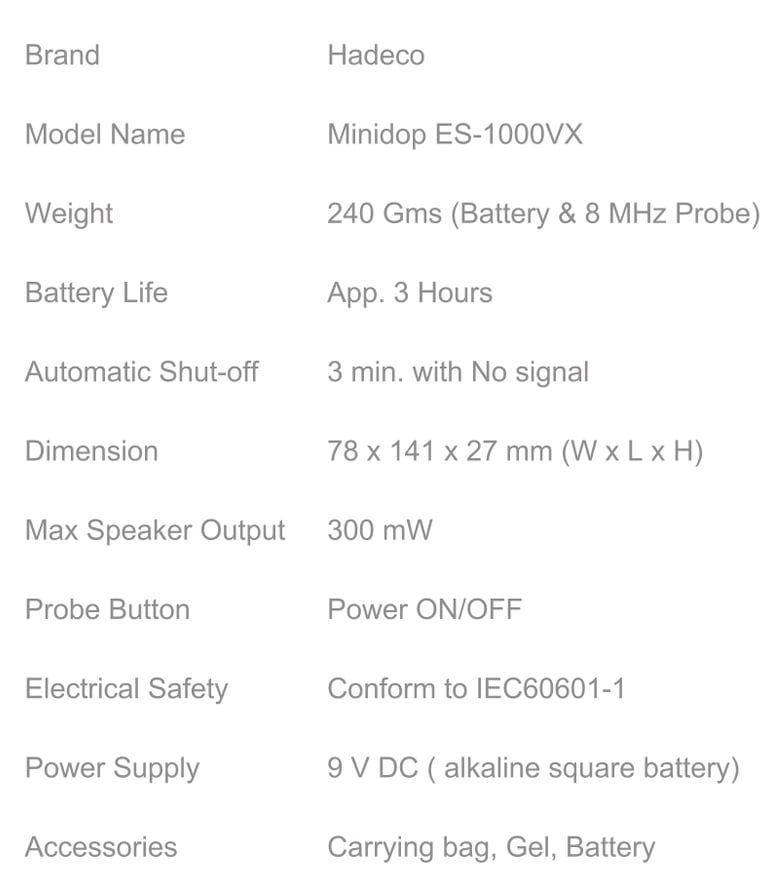

Minidop ES-100VX Pocket Doppler With Great Sound

Product Price:

Product Details:

Features:

• Pocketable, Handheld Size

• Great sensitivity

• Wide probe selection for user flexibility Clinics: 2, 4, 5, 8 & 10MHz Surgical: 8, 10 & 20MHz

• Convenient probe activation button turn the unit ON and OFF

Clinical Applications:

• Blood Flow Detection

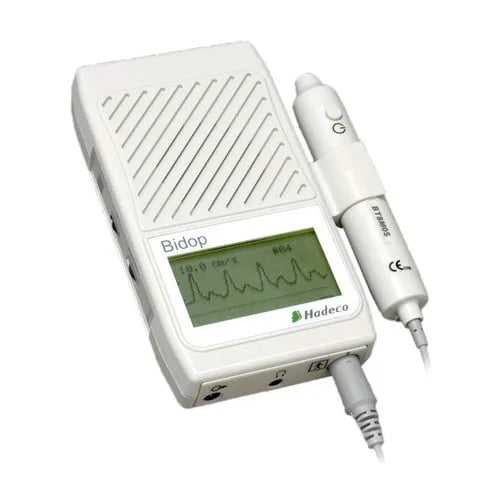

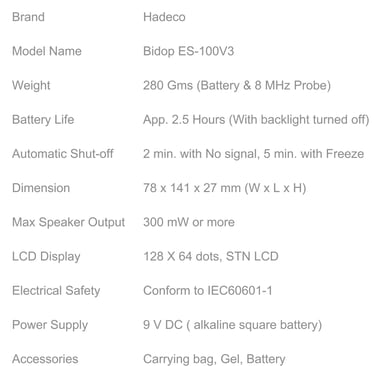

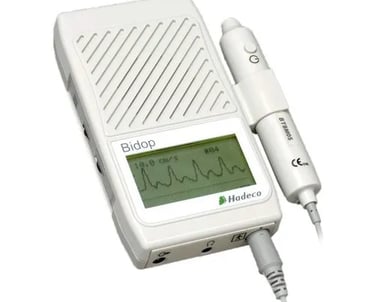

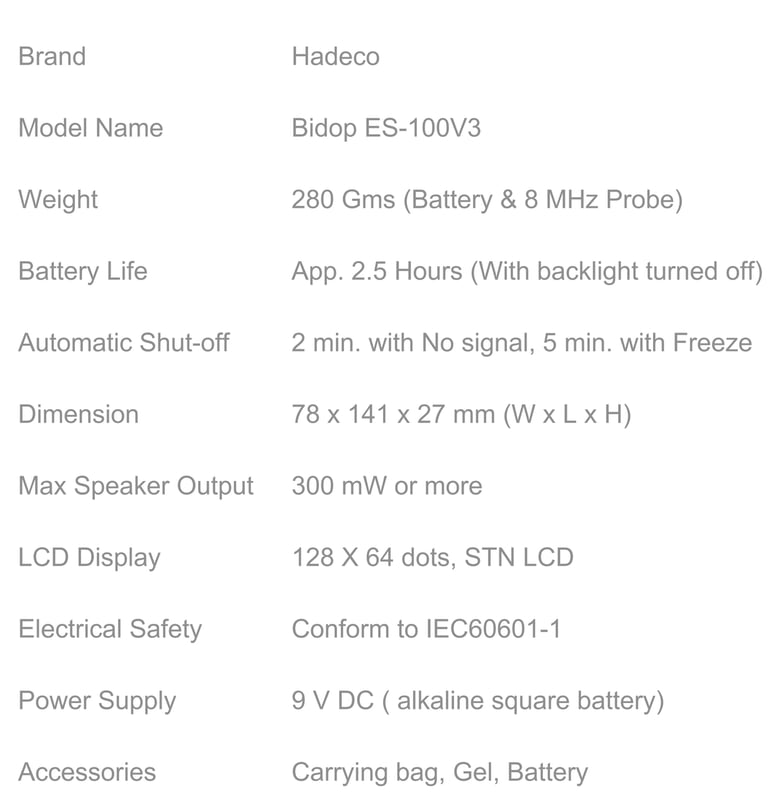

Bidop ES-100V3 With LCD

Microsurgery Pocket Doppler

Product Price:

Product Details:

Type of Surgery:

• Neuro, Cardiac, ENT Skullbase, Uro, Plastic and Vascular

Clinical Applications:

• To find the flow of arteries or veins / To trace the location of arteries or veins in surgeries

• Blood Velocity measurement cm/sec (Systolic Velocity, Diastolic Velocity, Systolic Diastolic Ratio, Maximum & Minimum Velocity, Pulsatility Index, Resistance Parameter and Heart Rate)

• Blood Volume Measurement ml/sec

Advantages:

• Smart-V-Link Software for Patient Report (ABI/TBI Main Screen, Upper Extremity, Lower Extremity, PPG Toe Pressure, PPG Venous Reflex, Pulse Volume Recording (PVR), Individual Waveform and Custom Screen)

  FFT Spectrum Analysis

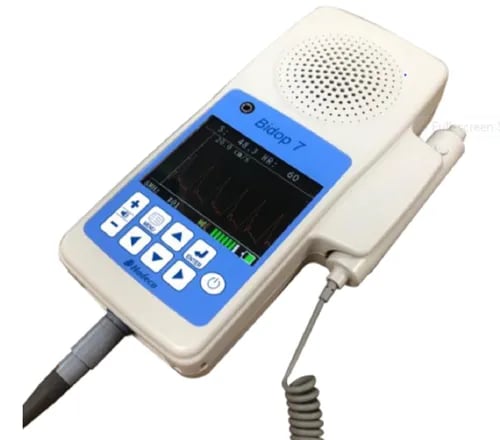

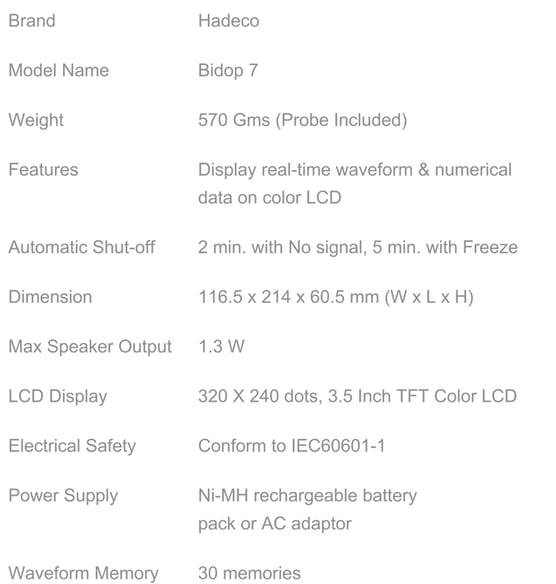

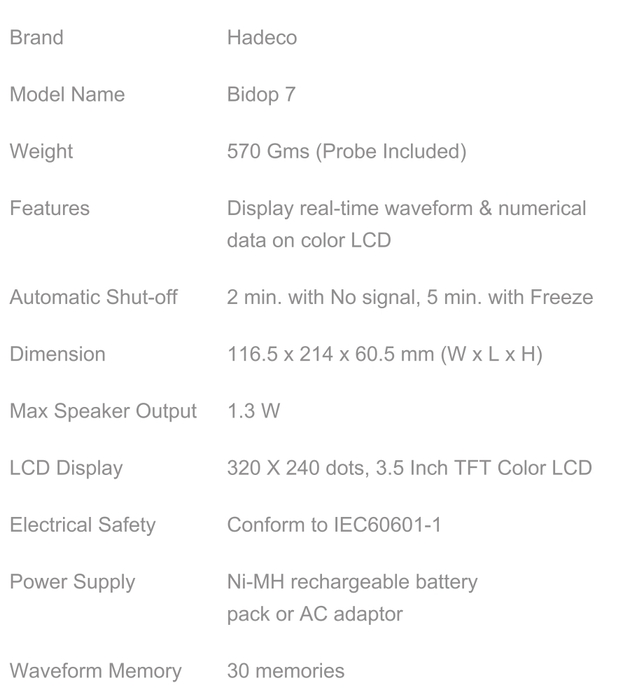

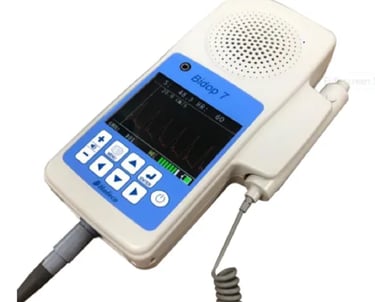

Bidop7 Bi-Directional Handheld Doppler With Colour LCD

Product Price:

Product Details:

Type of Surgery:

• Neuro, Cardiac, ENT Skullbase, Uro, Plastic and Vascular

Clinical Applications:

• To find the flow of arteries or veins / To trace the location of arteries or veins in surgeries

• Detection of arterial and venous blood flow velocity for vascular disease.

• Peak & Mean blood velocity determinations.

Advantages:

• High sensitivity with wider Doppler beam

• Optimized volume control from low to high flow

• Snap-lock connector for easy insertion and removal

• Advanced Menu Screen for easy operation

• Available for expanded arterial & venous testing (Optional PPG Probe)

USB Computer Interface:

• Transfers waveforms and numerical data to computer for data storage.

• FFT analysis available when connecting with Smart-VLink software.

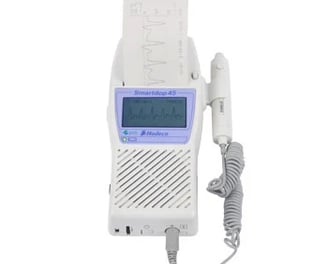

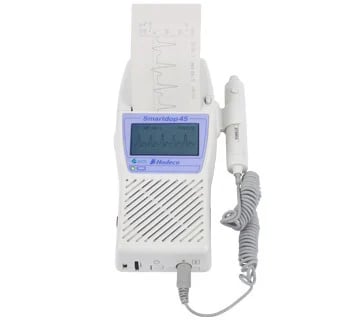

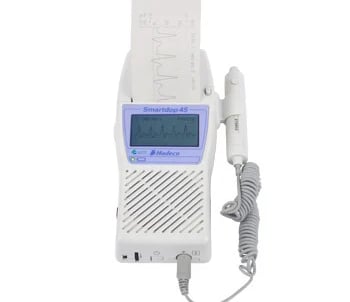

Smartdop 45 Hand-Held Bidirectional Vascular Doppler inbuilt Printer

Product Price:

Type of Surgery:

• Neuro, Cardiac, ENT Skullbase, Uro, Plastic and Vascular

Clinical Applications:

• To find the flow of arteries or veins / To trace the location of arteries or veins in surgeries

• Detection of arterial and venous blood flow velocity for vascular disease.

• Peak & Mean blood velocity determinations.

Advantages:

• Inbuilt Rechargeable Battery

• Blood Velocity measurement cm/sec

• (Systolic Velocity, Diastolic Velocity, Systolic Diastolic Ratio, Maximum & Minimum Velocity, Pulsatility Index, Resistance Parameter and Heart Rate)

• Blood Volume Measurement ml/sec

• Smart-V-Link Software for Patient Report

• (ABI/TBI Main Screen, Upper Extremity, Lower Extremity, PPG Toe Pressure, PPG Venous Reflex, Pulse Volume Recording (PVR), Individual Waveform and Custom Screen)

• Instant thermal Printout for quick diagnosis

Product Description:

• It is a Handheld Bidirectional Doppler with Real time waveform on in Built Thermal Printer & LCD Display. We can store up to 30 Waveform in the internal memory and generate patient report using Smart -V- Link Software. Optional PPG probe for Toe study.

Accessories:

• 8MHz Bidirectional Probe - For External Use

• Optional: Multi Frequency Probes 5 MHz, 8 MHz & 10 MHz Available

• Power Adaptor

• USB Interface Cable with Software (Pen Drive)

• Thermal Paper Roll

• Ultrasound Jelly Tube

• User Manual

• Carrying Bag

• Optional - PPG Probe (Photoplethysmography) PG-21

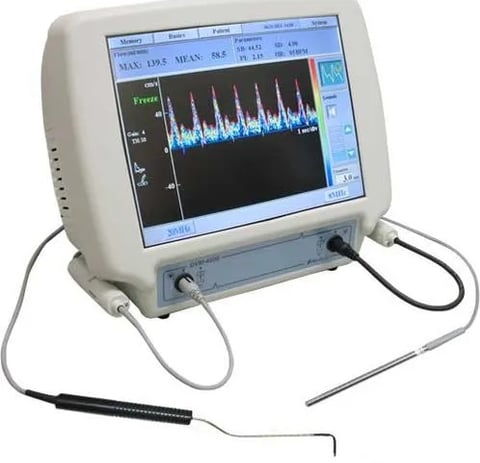

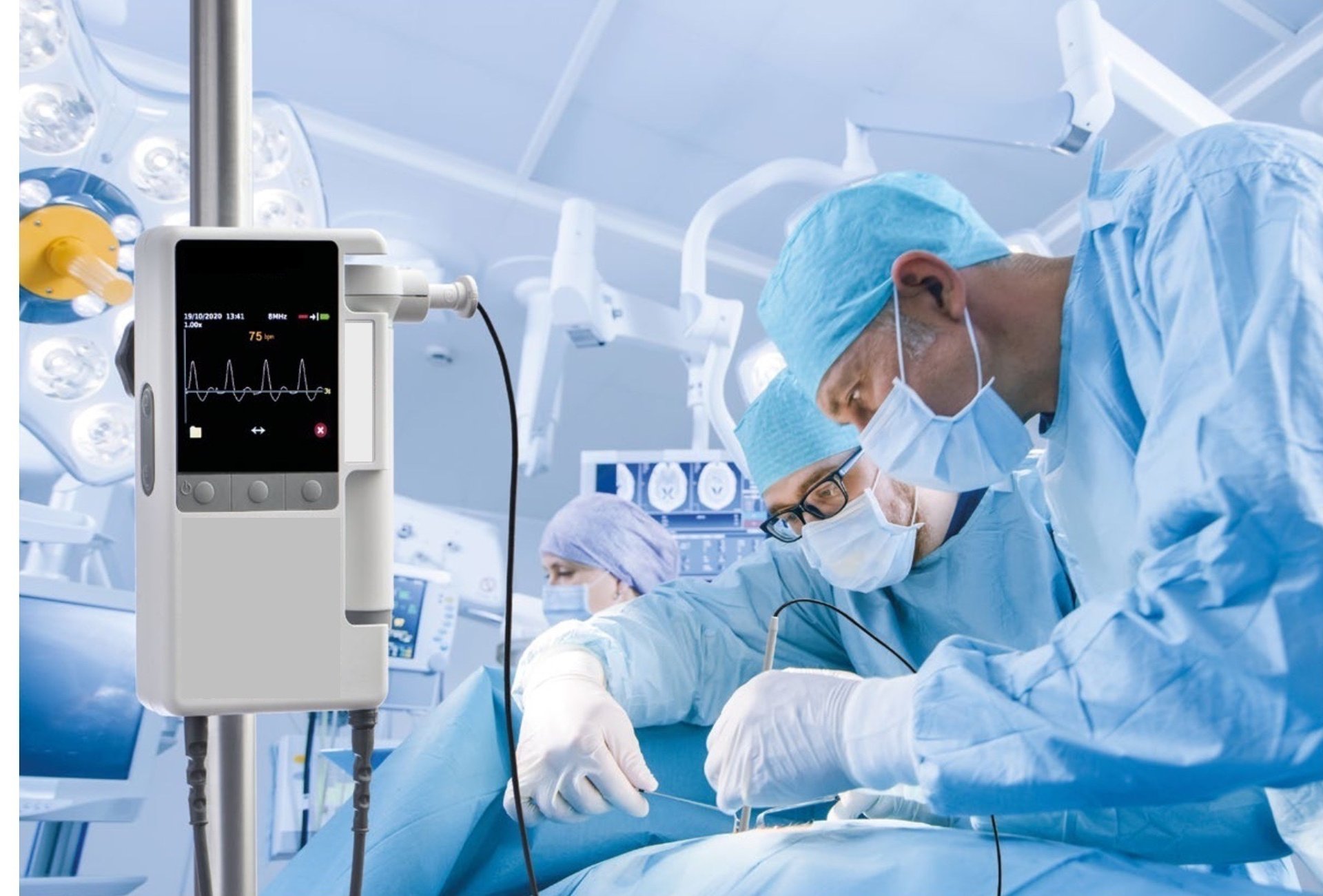

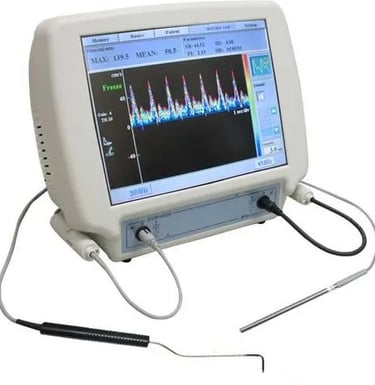

DVM-4500 Bi-Directional Doppler Volume Flow Meter

Product Price:

Type of Surgery:

• Neuro, Cardiac, ENT Skullbase, Uro, Plastic and Vascular, Carotid artery/ICA.

Clinical Applications:

• Detection of arterial & venous blood flow velocity for vascular disease

• Peak and Mean blood velocity determination

Features:

• Bi-directional Doppler with 10-inch large color touchscreen

• Simple design & operation with great Doppler sounds

• Multi-probe selection of 4, 5, 8, 10 & 20 MHz

• Exporting to PDF & DICOM® files for USB flash memory

• Internal 30 waveform memories

• USB computer interface for optional Smart-V-Link for Windows

• All standard numerical parameters

• PPG probe option for toe pressures

Accessories:

• Ultrasonic gel 1

• AC adaptor 1

• Power cable 1

• Operation manual 1

• Standard probe 2 (in case of standard set)

• Optional Windows Software (Smart-V-Link) with USB cable

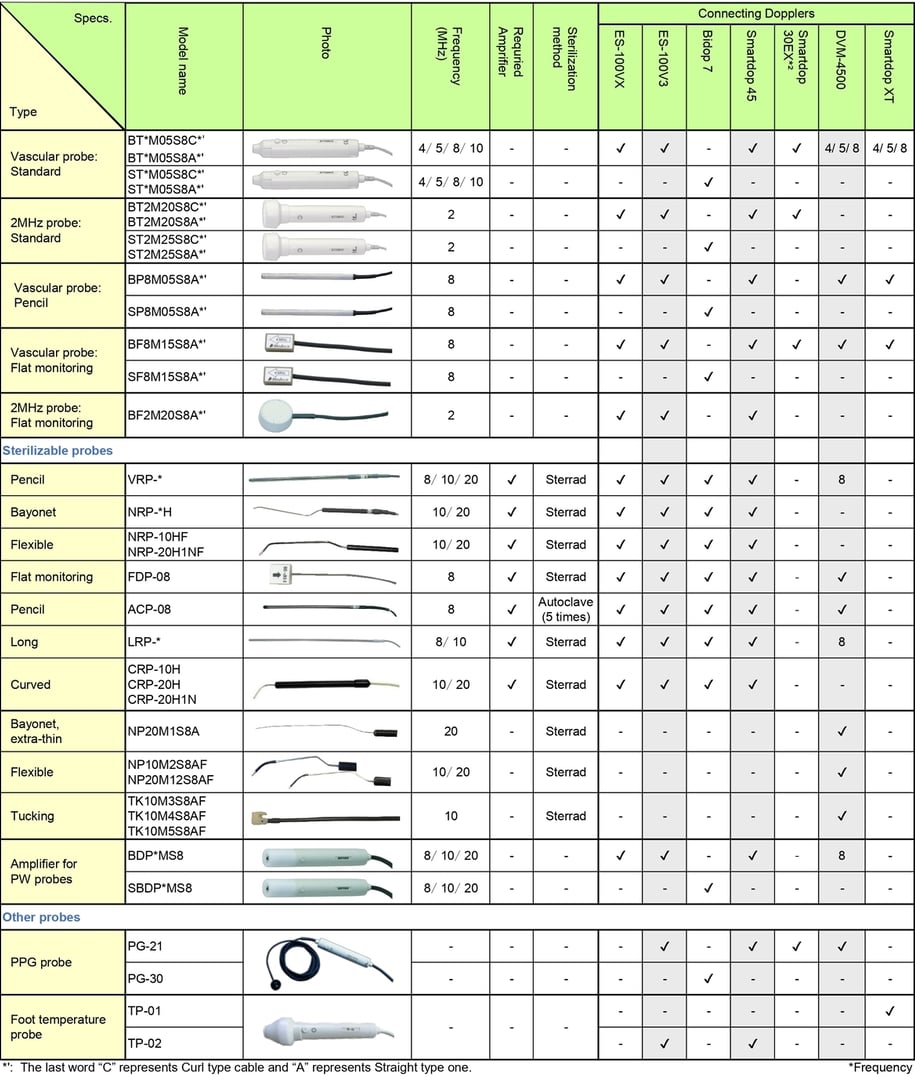

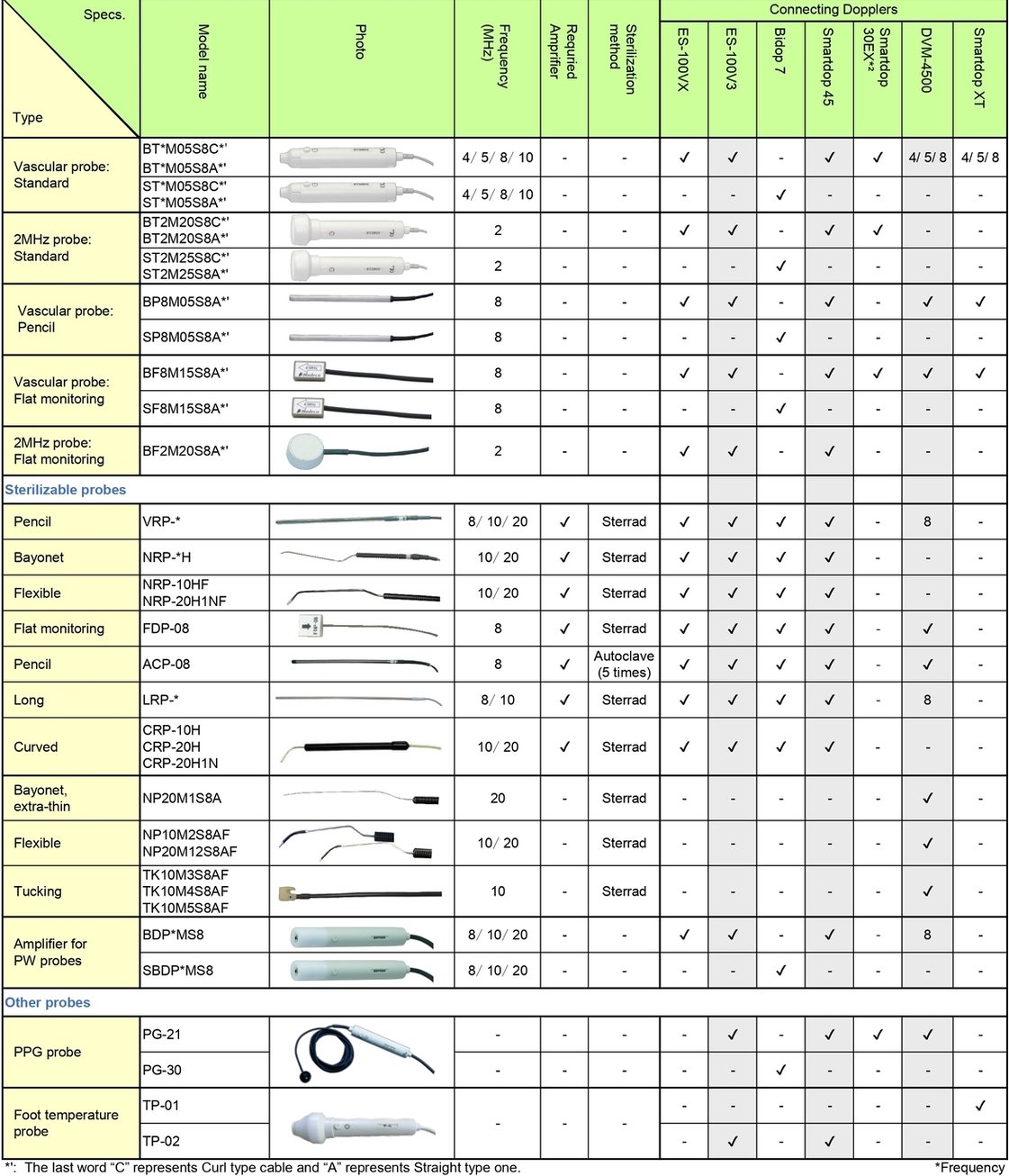

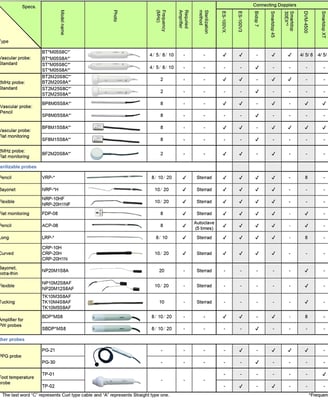

List of Probes

Product Price:

Bi-directional Doppler

A bidirectional Doppler is a medical device used to analyse blood flow in both directions, i.e., towards and away from the probe. Bidirectional Dopplers can detect blood flow in both positive and negative directions, allowing for a more complete assessment of blood flow in various vessels.
